Form Lighting's LED Headlights are the perfect upgrade for the 2014-2021 Toyota Tundra. The following installation guide will provide you with detailed instructions on how to install Form Lighting's LED Headlights for the 2014-21 Toyota Tundra. Check out the installation video and continue reading for step-by-step instructions below!
Table of Contents
Installation Video
Installation Tools
- Plastic Trim Removal Tool
- Ratchet
- 10mm Socket
- Phillips Head Screwdriver
Installation Instructions
Step 1 - Remove The Grille

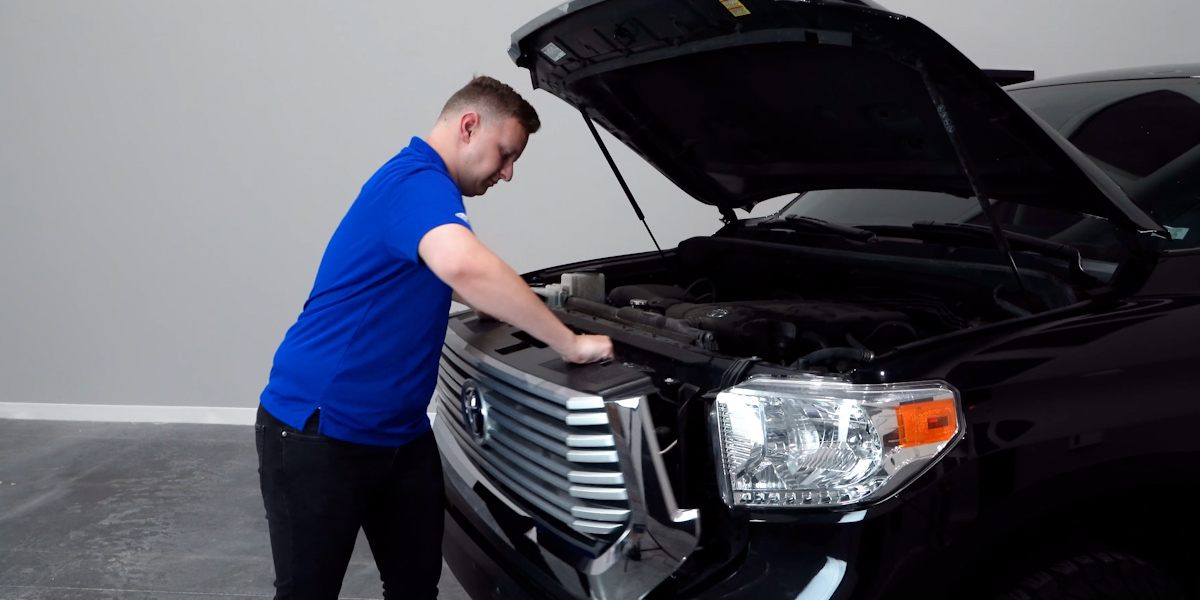

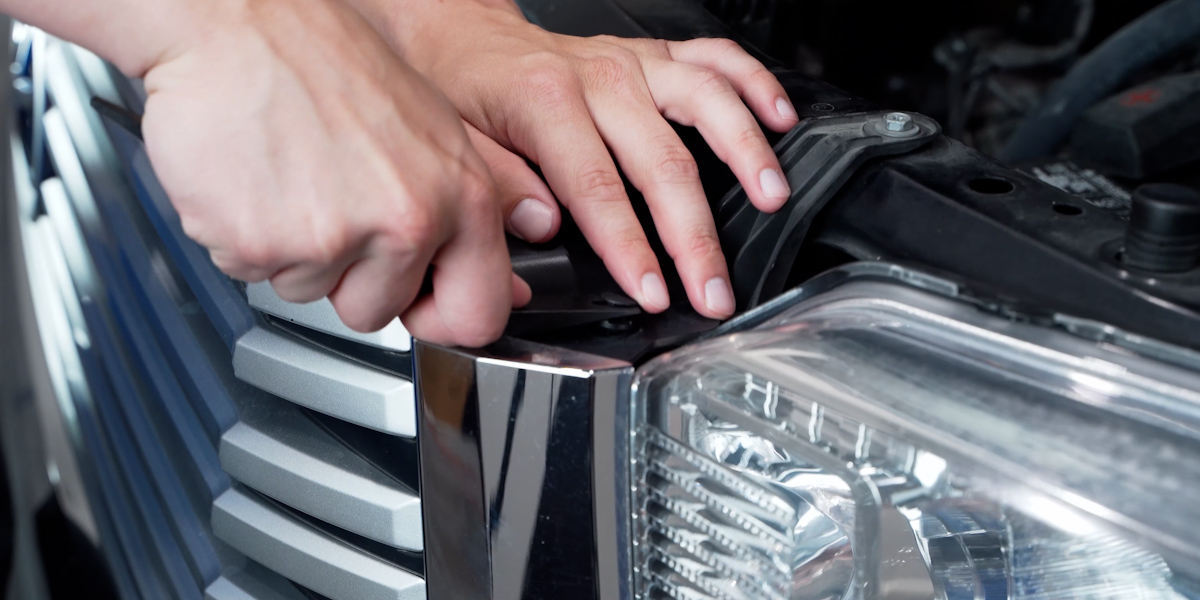

To start, pop the hood and remove two (2) plastic clips, one from either side of the grille.

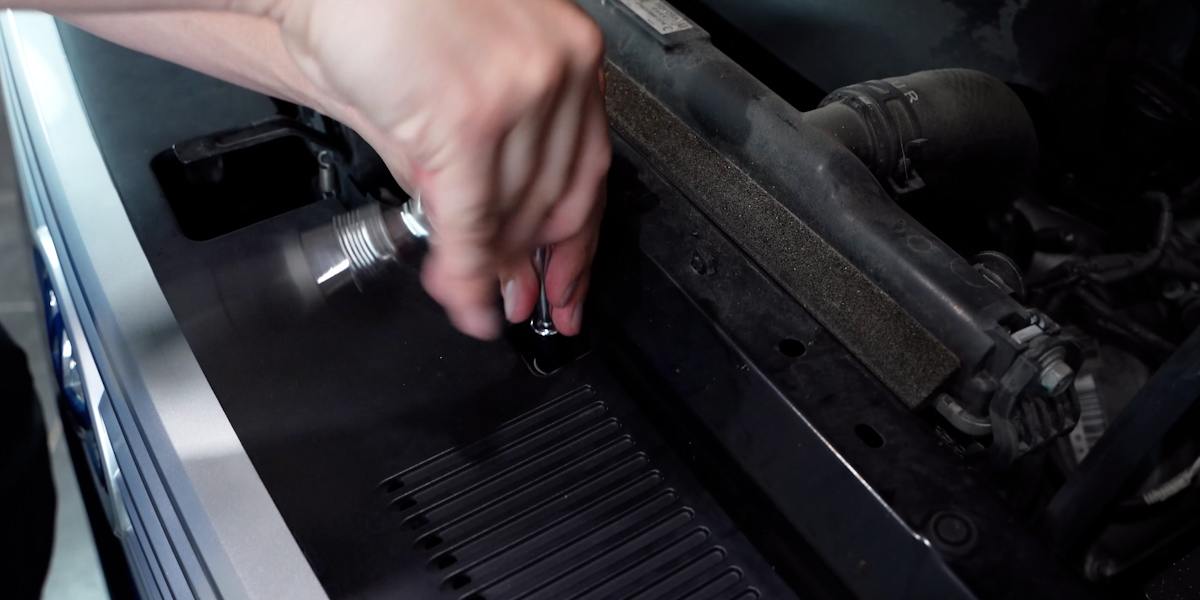

Use a 10mm ratchet to remove four (4) bolts across the top of the grille.
Now lift the grille up and away from the vehicle.
Step 2 - Removing Trim From Lamp

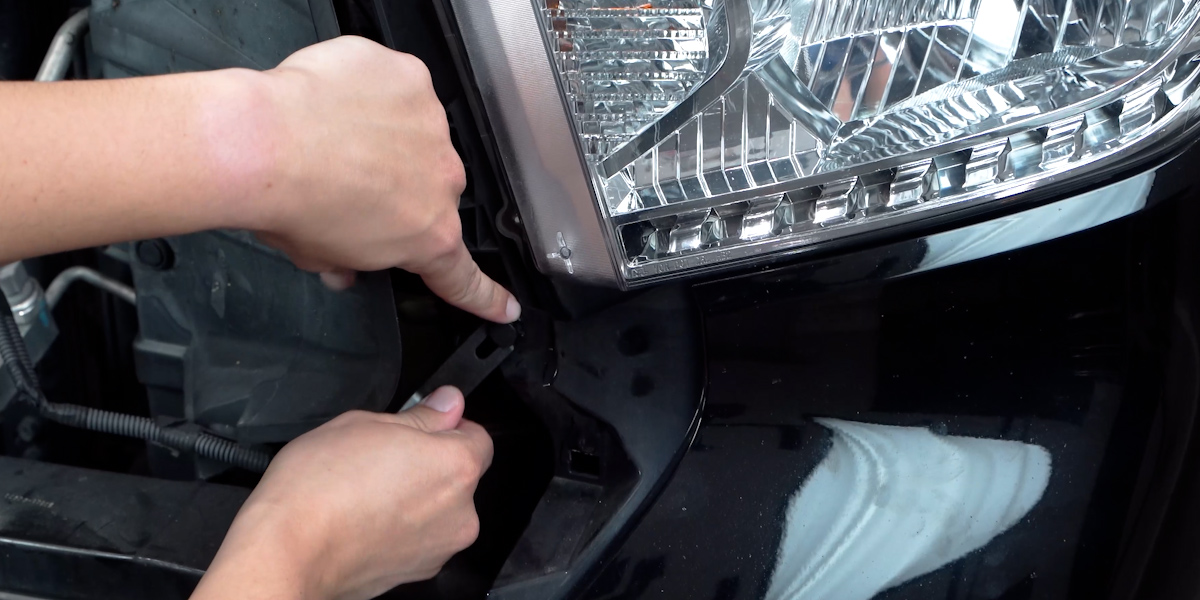

Remove the two (2) plastic clips on the front of the trim panel.

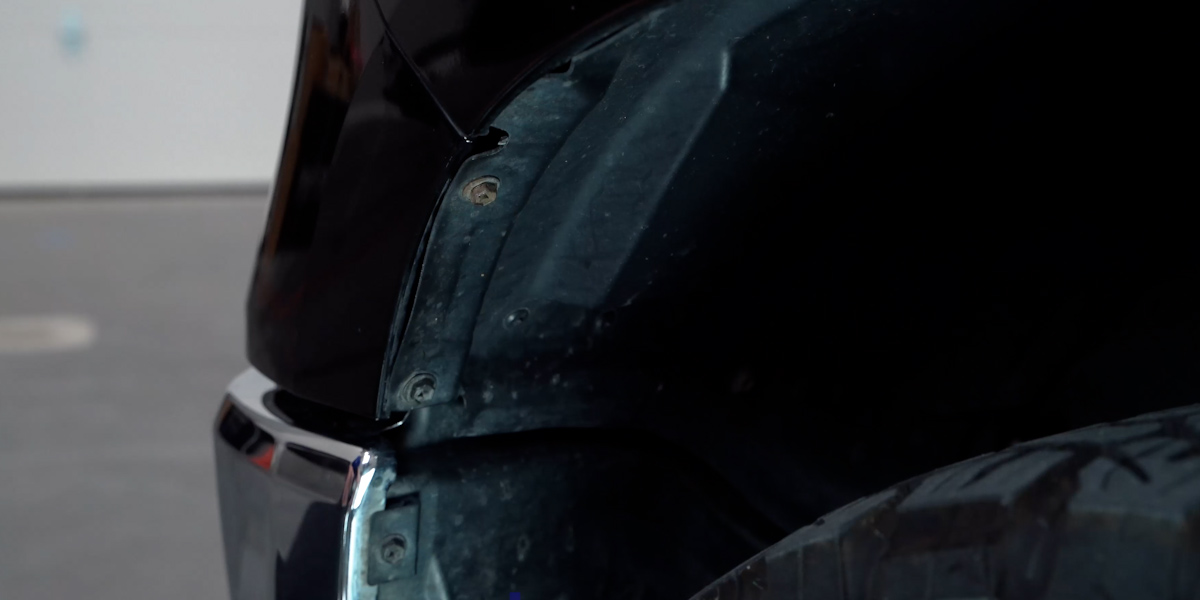

Next, remove two (2) 10mm bolts inside the fender.
Lift up and away from the vehicle to remove the trim panel.
Step 3 - Remove Factory Lamp

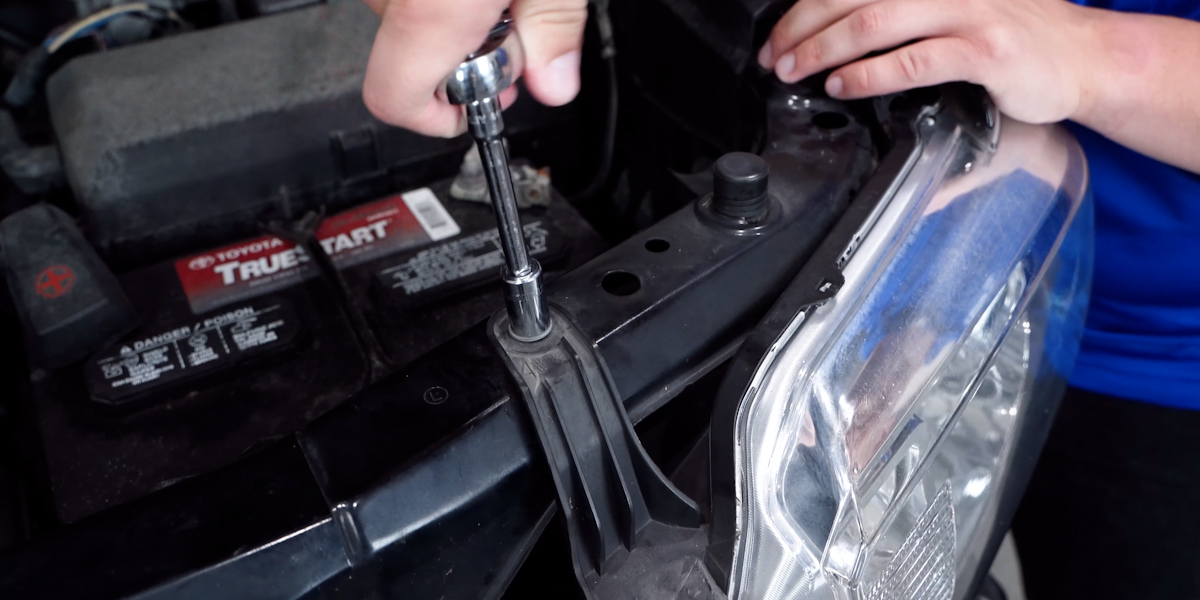

Remove three (3) 10mm bolts holding on the lamp. There will be two (2) on top and one (1) on the side.

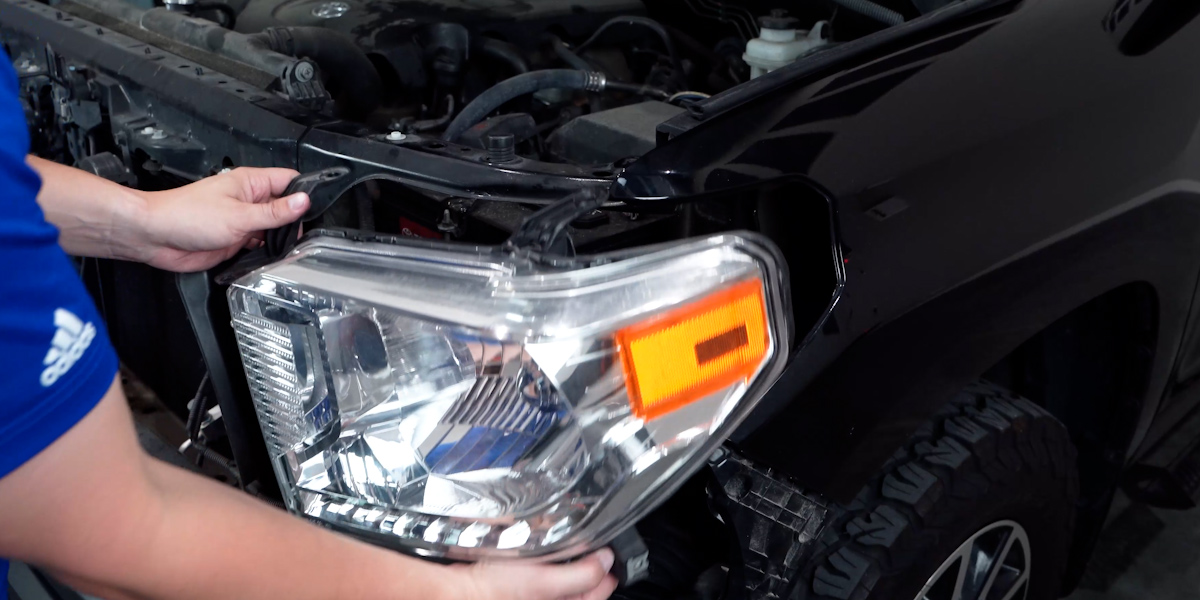

Next, disconnect all the factory wiring harnesses, and remove the lamp.
Step 4 - Installing Adapter Harnesses

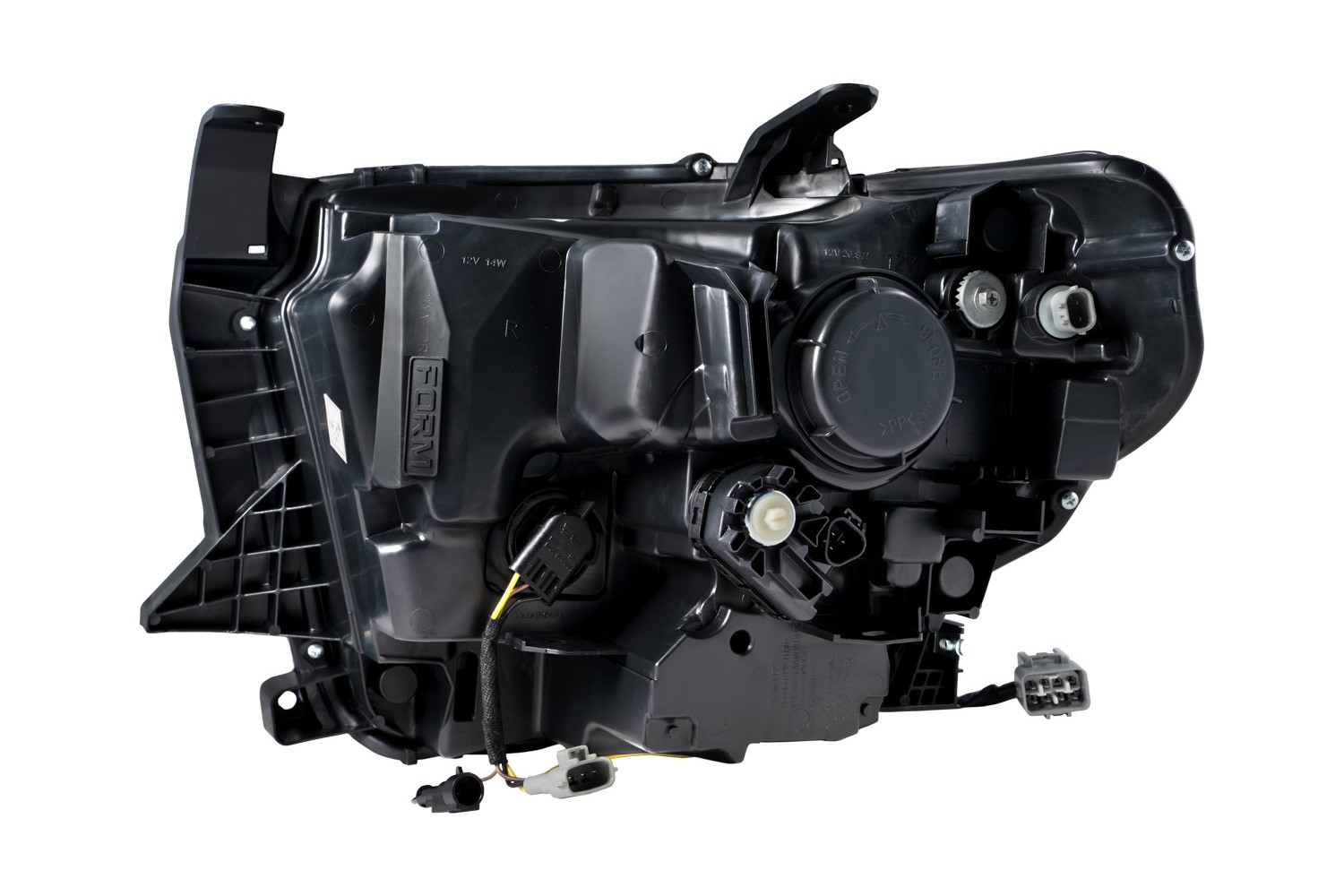

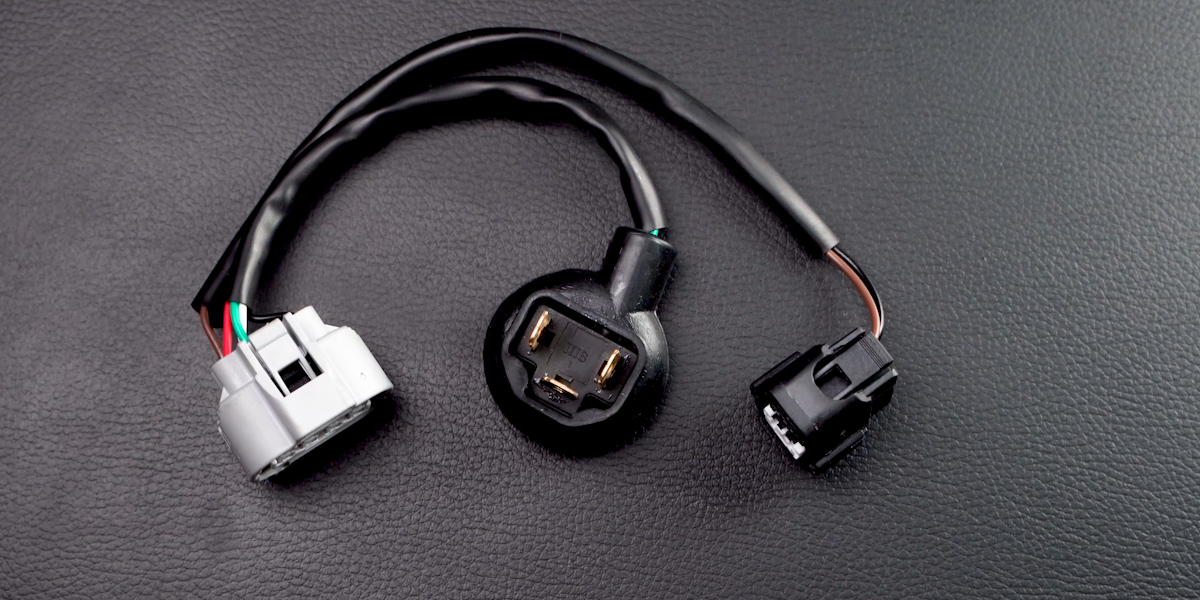

Install the included headlight adapter harness. Plug the grey end into the corresponding connector coming from the back of the headlamp.

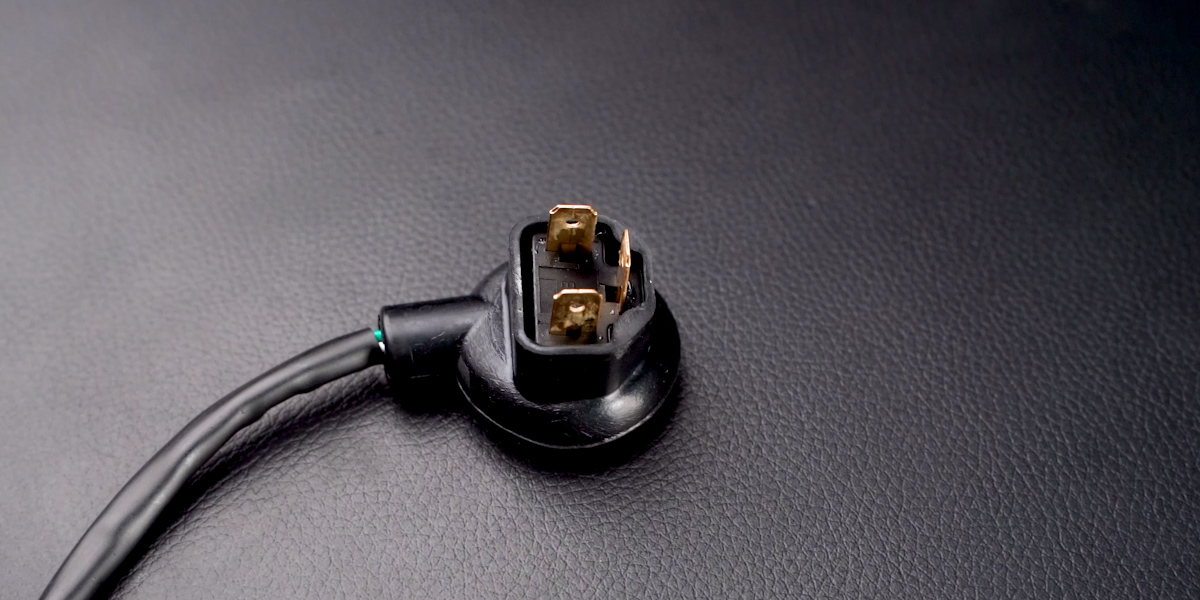

Plug the H4 adapter into the headlight harness coming from the vehicle.

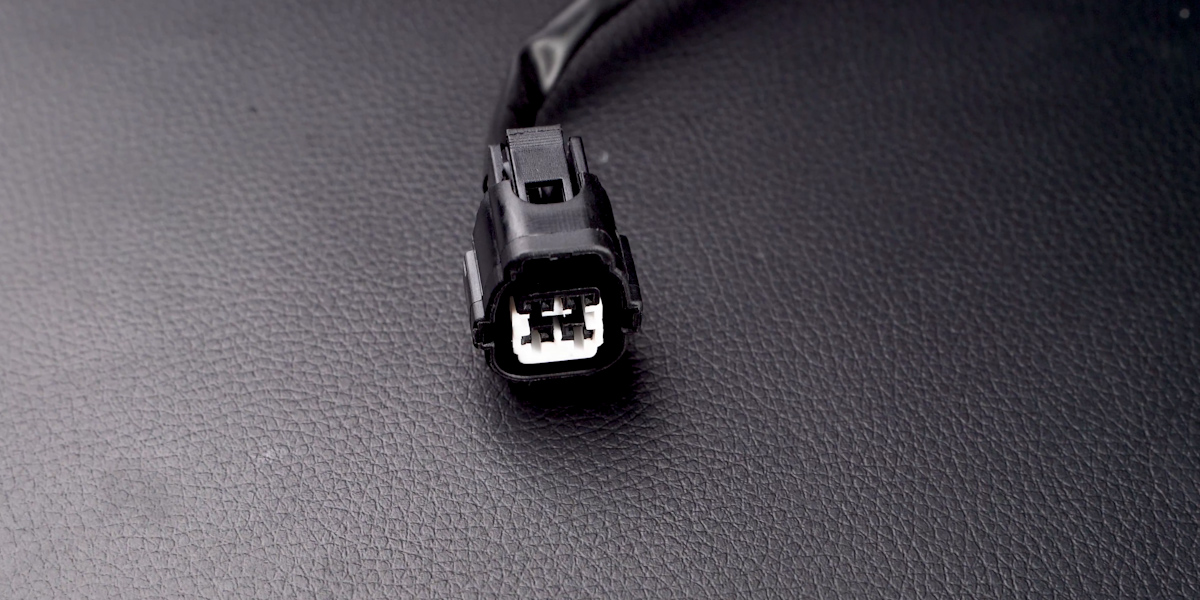

The remaining connector on our adapter will only be used if your truck comes equipped with factory LED headlights.

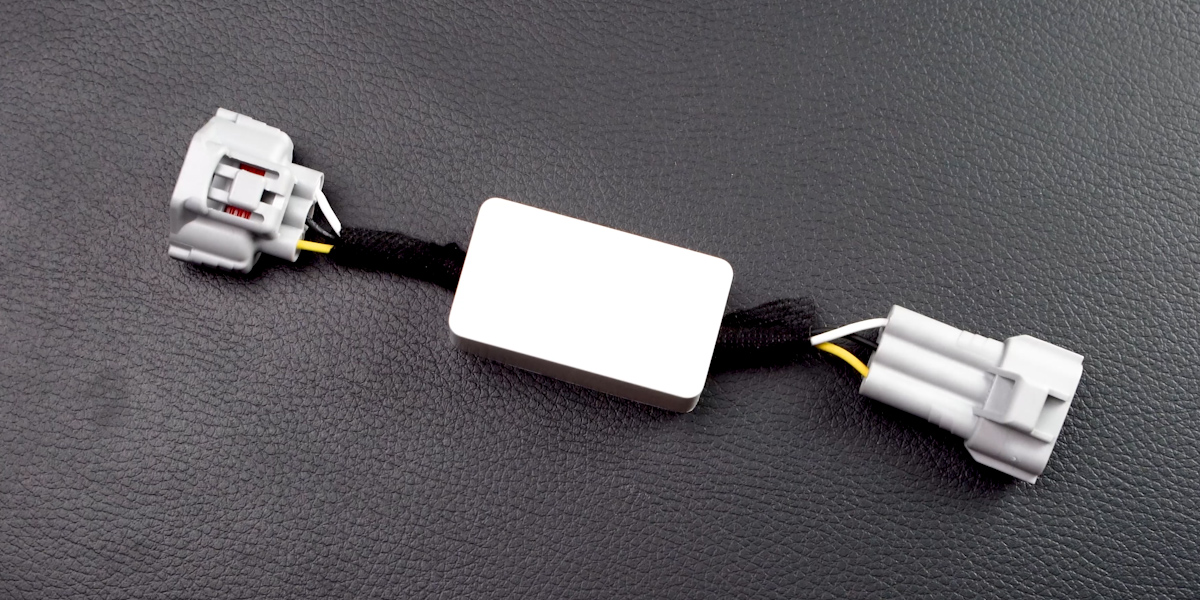

Our reflector option includes an additional module (shown below). This will plug into the corresponding gray connector coming from the back of your headlamp, and then plug into the vehicle.
Note: If you have purchased our projector headlight option, this harness will not be included.
Step 5 - Mounting Your New Headlight
Connect all your wiring harnesses, and install our FORM Headlamp using the factory hardware. Repeat these steps to install your passenger-side headlight.
Step 6 - Routing Your DRL Harness
Note: You can skip this step if your truck came equipped with factory DRLs, or you only want the C-light to activate with your main beam.

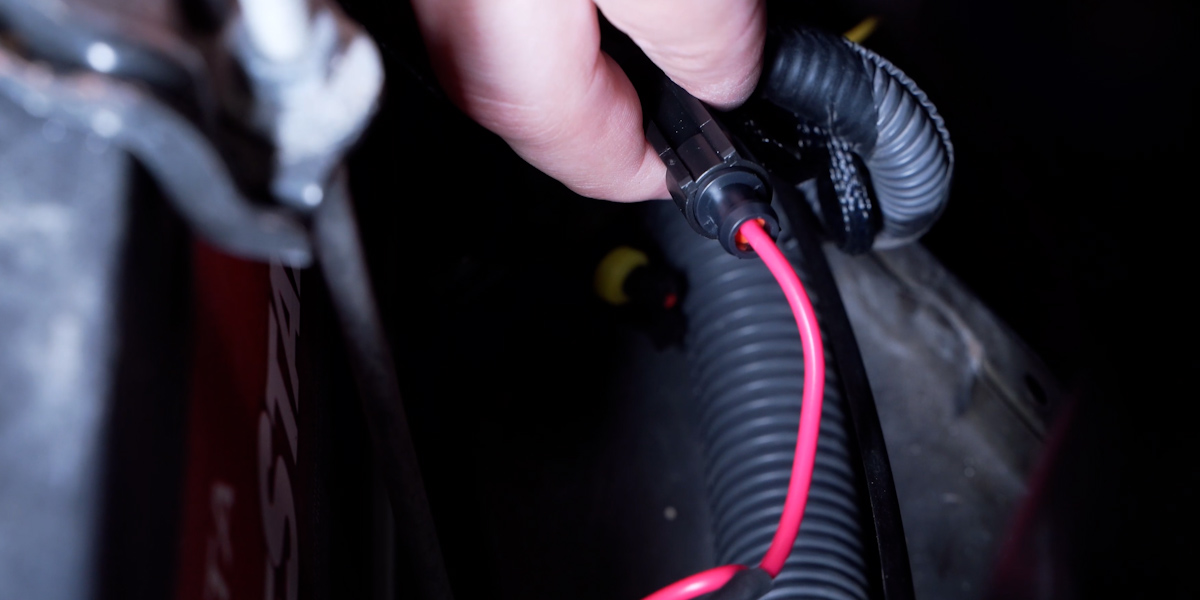

Disconnect the brown wire from the back of both headlights and plug in our add-a-fuse harness

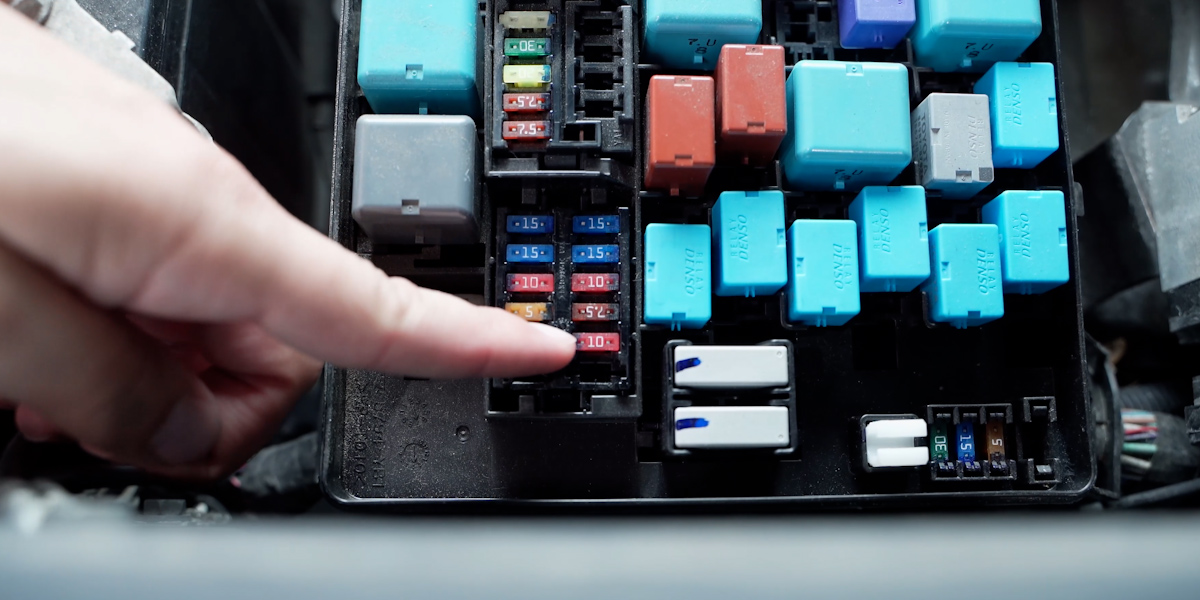

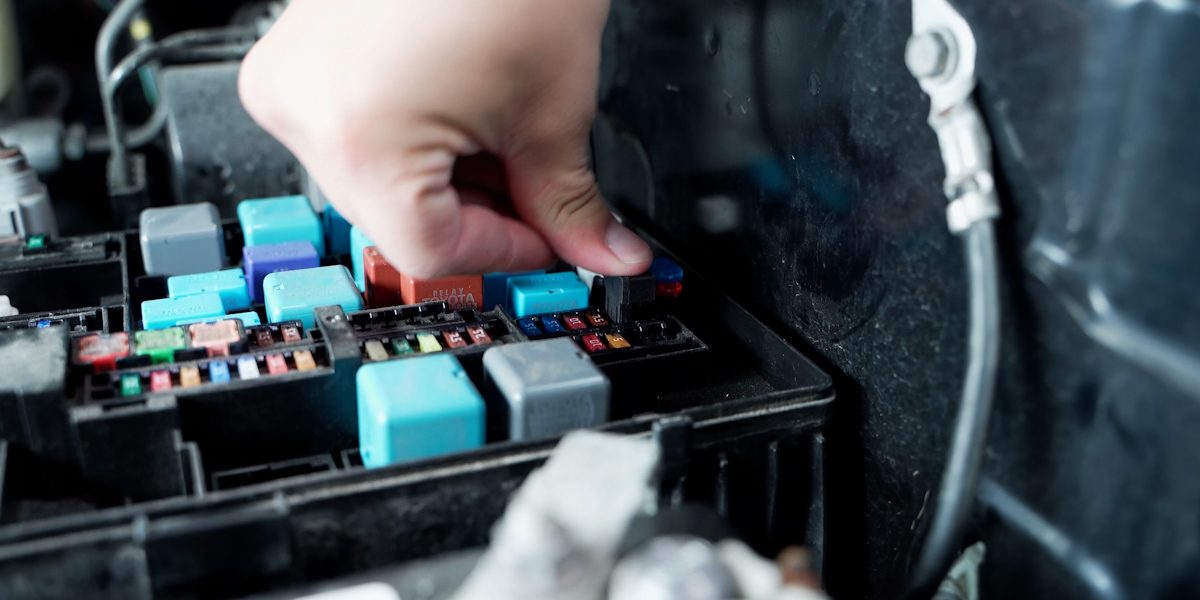

Remove the cover on your fuse box and use a pair of needle nose pliers to remove the highlighted 10 amp ignition fuse.
Now install your add-a-fuse harness in place of the 10 amp fuse.
Step 7: Test for Functionality

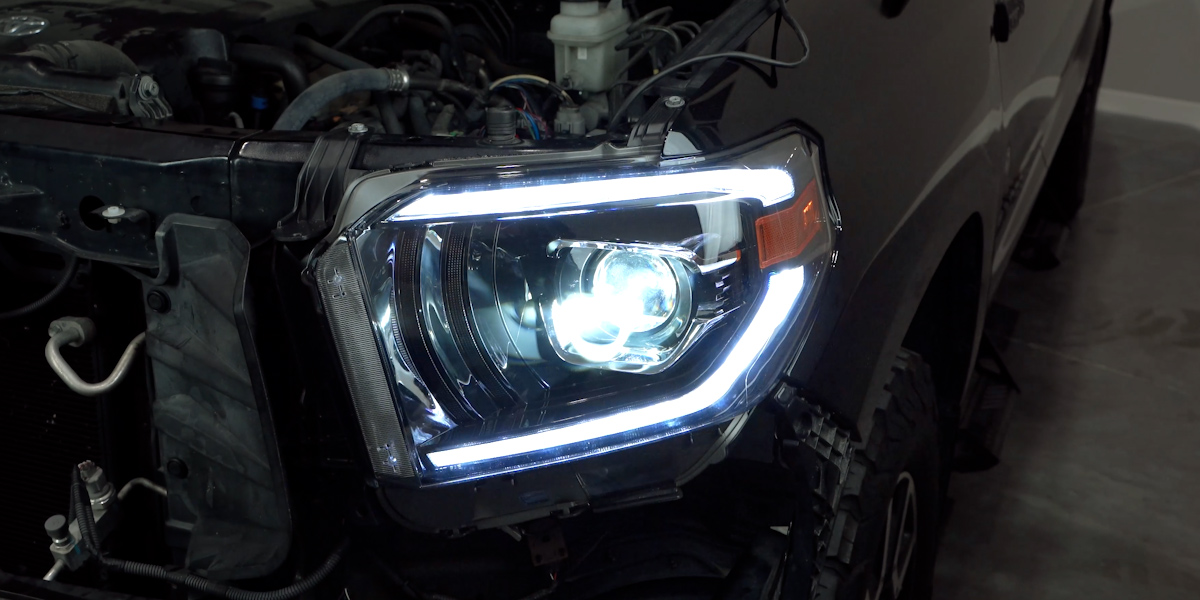

Test the headlight function thoroughly.
Once you have verified that your lights are functioning properly, reinstall your grille and trim pieces by reversing the steps we used to take everything apart.

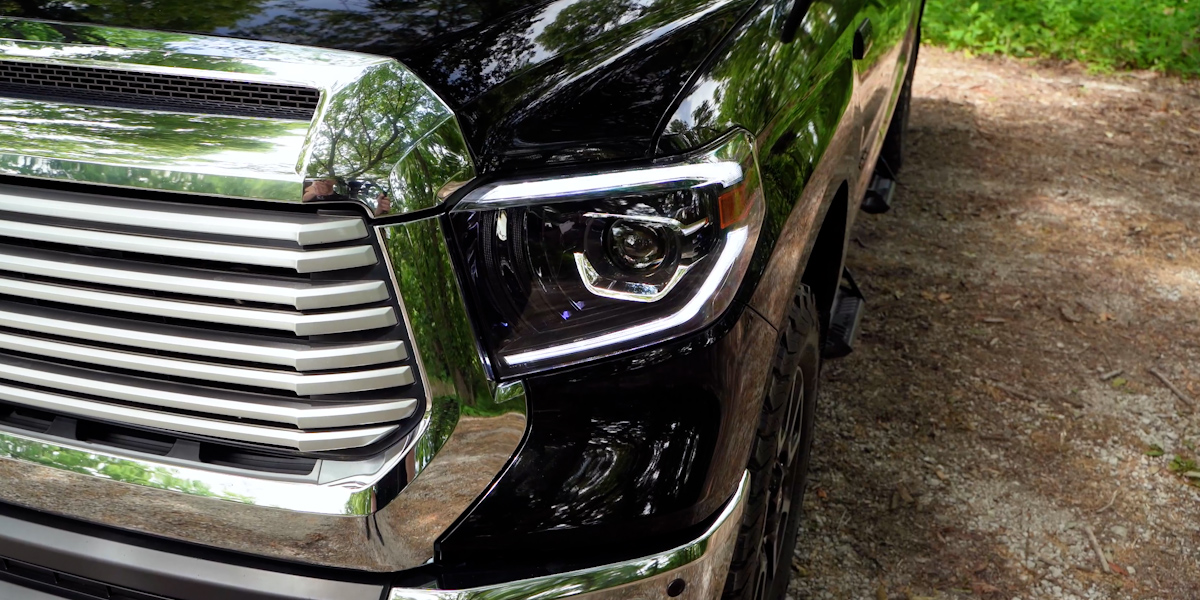

The installation is now complete. Enjoy your new LED headlights for the 2014-2021 Toyota Tundra!
Questions About the Installation?
If you have any questions or issues installing Form Lighting's LED Headlights for the 2014-2021 Toyota Tundra, please contact us for further assistance.
Where Can I Buy Form Lighting 2014-2021 Toyota Tundra LED Headlights?
If you’re ready to upgrade your 2014-2021 Toyota Tundra with Form Lighting LED Headlights, you can purchase them by clicking here or using our dealer locator to find a dealer near you.
Want to know more about Form Lighting products? Visit formlights.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKUs: FL002, FL003
