Form Lighting's Sequential LED Tail Lights are the perfect upgrade for the 2016-2023 Toyota Tacoma. These OEM-grade LED tail lights are packed with modern features including a unique startup animation that activates whenever the parking light turns on with a chasing, stacking pattern that is sure to turn heads! The tail lights also feature a full LED turn signal and an ultra-modern, high-end appearance.
The following installation guide will provide you with detailed instructions on how to install Form Lighting's LED Tail Lights on the 2016-2023 Toyota Tacoma. Check out the installation video and continue reading for step-by-step instructions below!
Table of Contents
Installation Video
Installation Tools
- Ratchet
- 10mm Socket
Installation Instructions
Step 1 - Lower Tailgate
Begin the installation by lowering the tailgate to gain access to the factory tail lights.

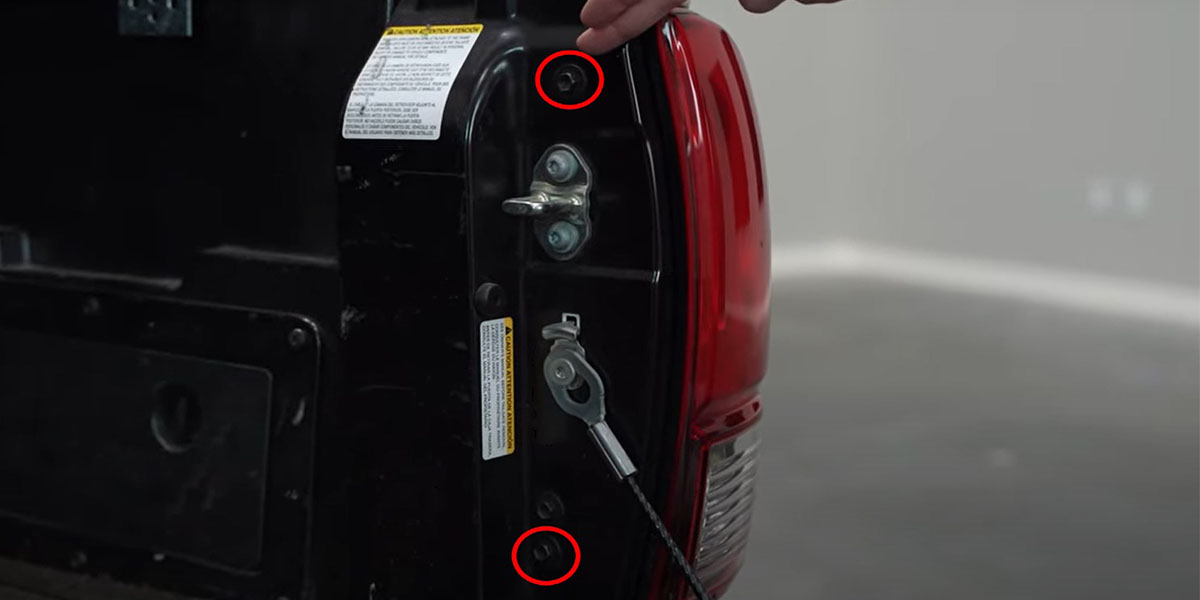

Step 2 - Remove Bolts
Beginning on the passenger side, use the 10mm socket to remove the two 10mm bolts (circled in red below) holding the factory tail light to the vehicle. There is one bolt located near the bottom and one located near the top of the tail light.

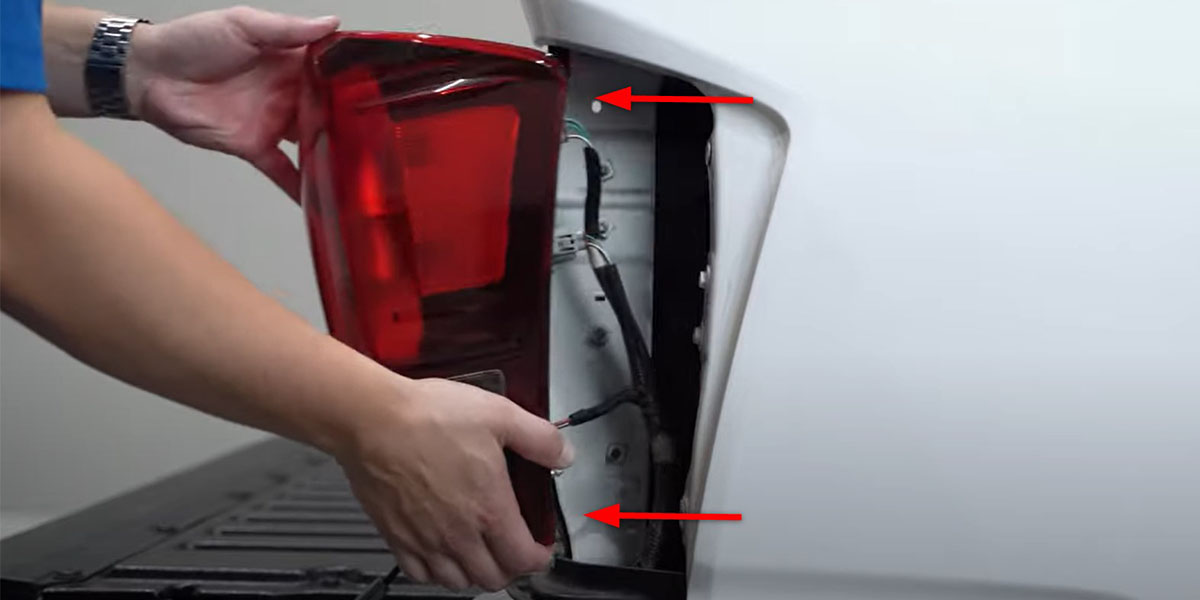

Step 3 - Remove Factory Tail Light
There are two retaining clips still holding the tail light to the vehicle. To remove it, grab the top and bottom of the factory tail light and firmly pull it away from the vehicle. Be mindful that the connectors are still plugged into the factory wiring harness.

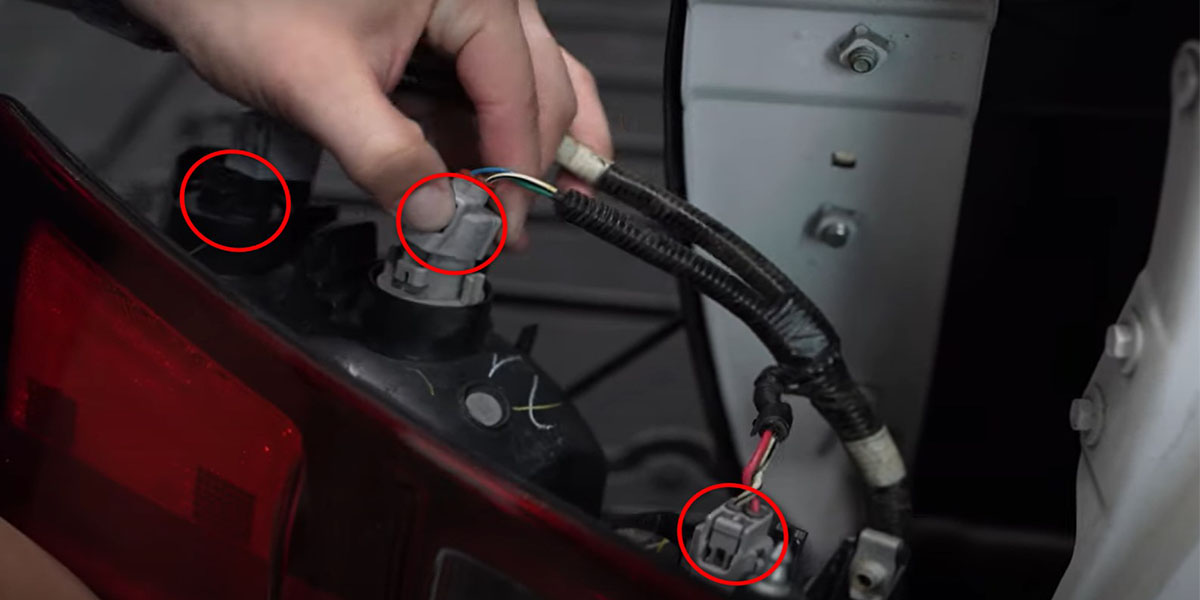

Step 4 - Disconnect Connectors
Once the tail light is removed, disconnect the three connectors of the factory wiring harness (circled in red below) from the back of the tail lights.

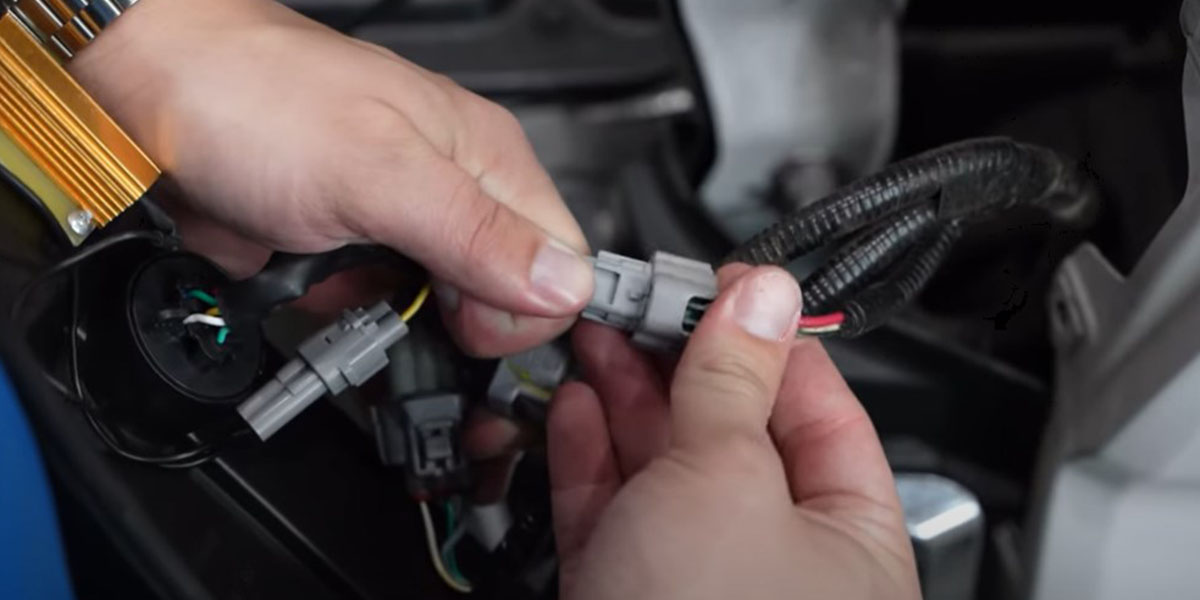

Step 5 - Connect Form Tail Light
Plug the three (3) factory wiring harness connectors that were disconnected in Step 4 into the corresponding connectors on the back of the Form Tail Light.

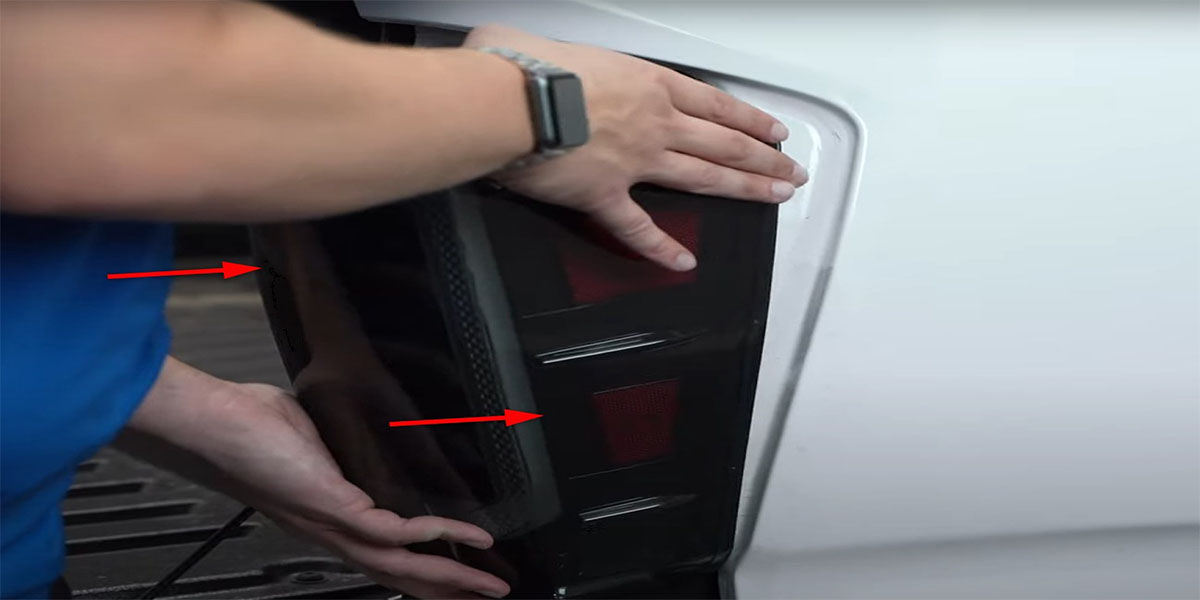

Step 6 - Push the Form Tail Light in Place
Push the Form Tail Light into position on the vehicle until you feel the retaining clips secure it in place.

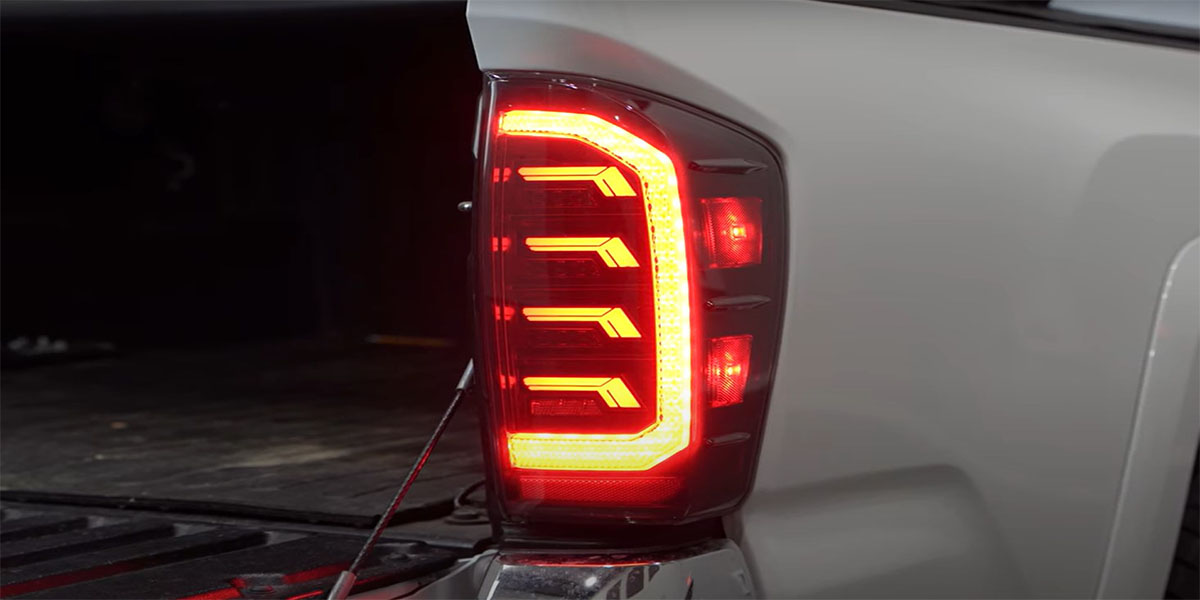

Step 7 - Test Functionality
With the Form Tail light connected and in place, test the functionality of the tail light.

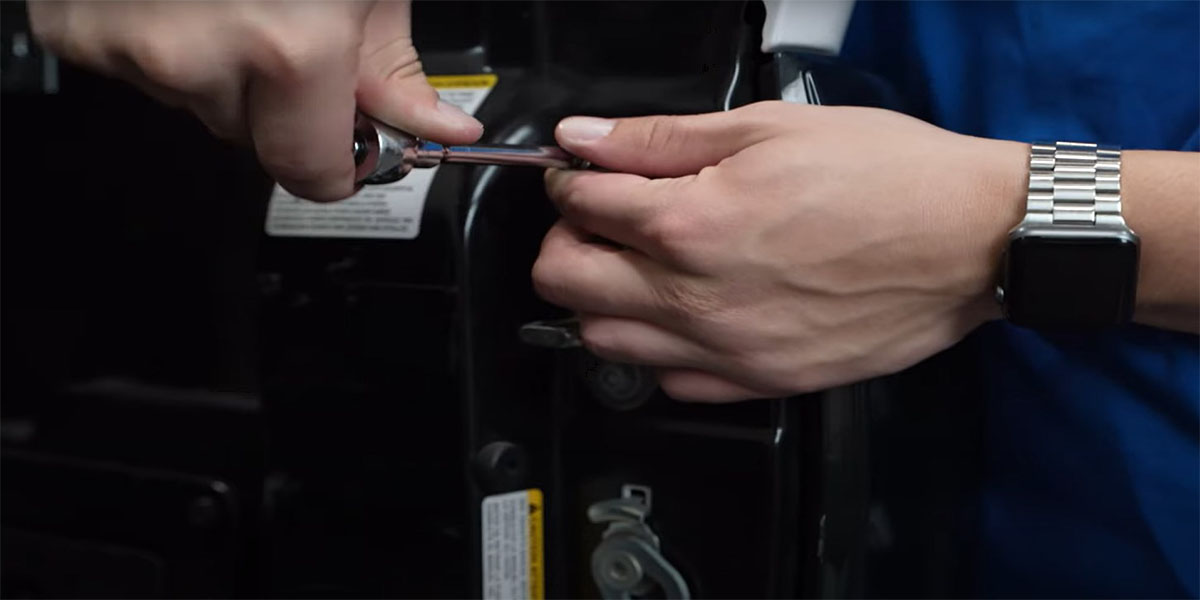

Step 8 - Install Bolts
Once you've verified that everything is working properly, replace the two 10mm bolts that were removed in Step 2 to secure the Form Tail Light to the vehicle.
Step 9 - Install Driver's Side Form Tail Light
Repeat Steps 1-8 to install the remaining Form Tail Light on the Driver's Side of the vehicle.
Questions About the Installation?
If you have any questions or issues installing Form Lighting's Sequential LED Headlights for the 2016-2023 Toyota Tacoma, please contact us for further assistance.
Where Can I Buy Form Lighting 2016-2023 Toyota Tacoma LED Tail Lights?
If you’re ready to upgrade your 2016-2023 Toyota Tacoma with Form Lighting LED Tail Lights, you can purchase them by clicking here, or use our dealer locator to find a dealer near you.
Want to know more about Form Lighting products? Visit formlights.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKUs: FL0019, FL0018.
